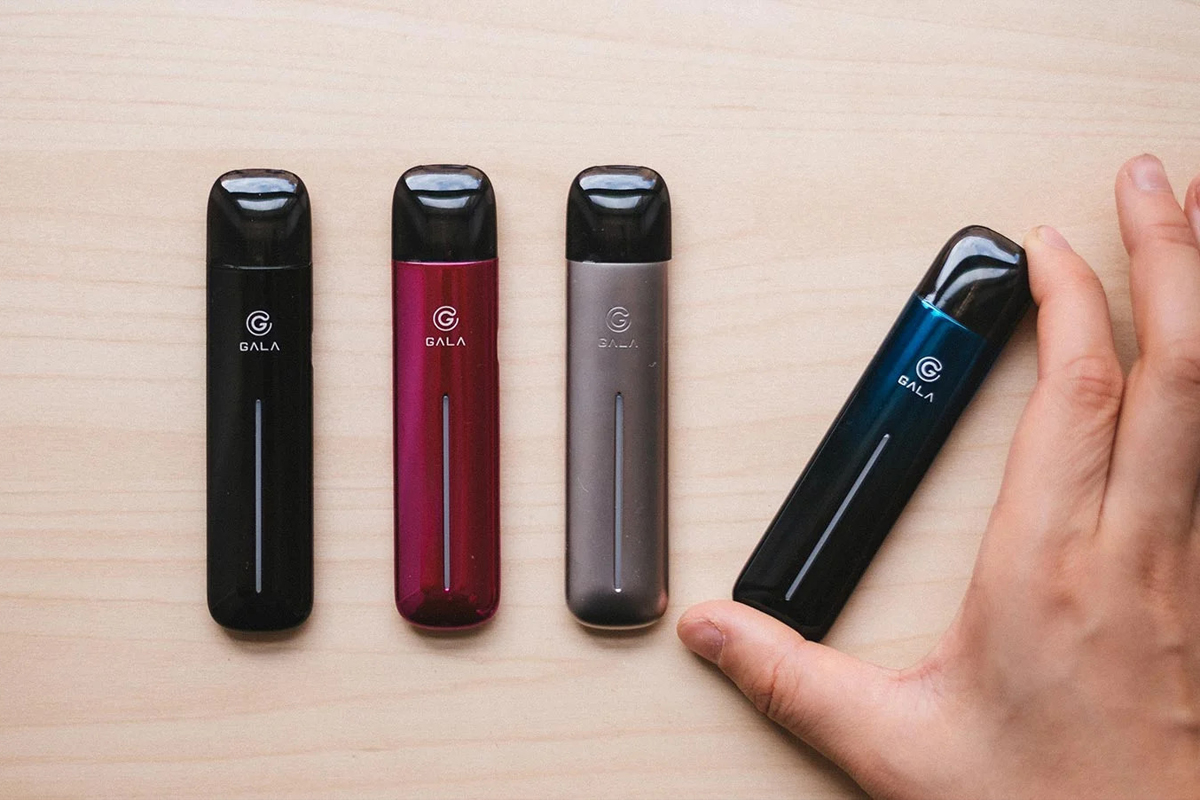

How Pod Systems Work: Internal Mechanics of Pod Vape Devices

How Pod Systems Work — Inside the Mechanics of Pod Vape Devices

Pod systems are often described as “simple vape devices.” From the outside, that seems true — compact body, snap-in cartridge, no complex settings. But internally, a pod system is a tightly coordinated micro-platform that combines electronics, thermal engineering, liquid transfer mechanics, and airflow control into a calibrated puff system.

A pod device is not just a small vape. It is a two-module vapor platform:
• reusable battery base
• replaceable pod cartridge

Each module has a separate engineering role. The battery base manages power delivery and activation logic. The pod cartridge manages liquid storage, transfer, heating, and aerosol formation.

Understanding how pod systems work helps explain why they deliver stable performance, why nicotine transfer feels consistent, and why they behave differently from both sealed disposables and high-power adjustable devices.

For readers comparing formats, the structural contrast with sealed devices is explained in how disposable vape systems work internally — where battery, liquid, and coil are permanently integrated rather than modular.

You may also Like

Pods vs Mods: Technical Differences Between Pod Systems and Mod Vapes

February 4, 2026

This article breaks pod systems down step by step — from activation trigger to aerosol output.

The Two-Module Architecture — Battery Base and Pod Cartridge

The defining feature of a pod system is modular separation.

Battery base contains:
• rechargeable battery cell
• control circuit board
• activation sensor
• output regulation logic
• safety protections

Pod cartridge contains:
• e-liquid reservoir
• wick structure
• heating coil
• vapor micro-chamber
• airflow channels
• sealing system

This separation allows each side to be optimized independently. The battery platform is built for long reuse. The pod cartridge is built for calibrated, limited lifecycle performance.

Cartridge internal structure — including wick, coil, chamber, and seal layers — is examined in detail in pod cartridge ingredients and construction.

Because the cartridge is replaceable, coil and liquid systems can be tightly tuned without requiring long multi-month durability.

Activation Systems — How the Device Knows You’re Inhaling

Most pod systems are draw-activated, meaning the device turns on automatically when the user inhales. No button is required.

Inside the battery base is a pressure or airflow sensor. When the user draws through the mouthpiece:
• air enters intake ports
• pressure changes inside the sensor channel
• the sensor detects flow
• the control board sends current to the coil

This process happens in milliseconds.

Some pod systems also support button activation or hybrid activation. But even in button systems, airflow still shapes coil behavior because draw speed affects cooling and aerosol density.

Activation timing matters. If activation lag is too long, the first part of the puff produces little aerosol. If too sensitive, the device may trigger unintentionally. Sensor calibration is therefore part of pod platform engineering — not just a convenience feature.

The Power Path — From Battery to Coil

Once activation is triggered, the control circuit connects the battery output to the coil inside the pod cartridge.

The power path includes:
• battery cell
• regulation circuit
• contact terminals
• cartridge coil leads
• heating coil

Pod systems usually operate in a moderate power band — higher than ultra-small disposables, lower than adjustable mods. The goal is stable aerosol formation, not maximum vapor output.

Because the battery base is reused across many pods, regulation quality matters more than in single-life devices. Output smoothing and cutoff timing help maintain repeatable coil heat across different cartridge cycles.

Device class differences in power flexibility are outlined in pod systems vs mod devices — where adjustable platforms allow much wider heat ranges.

Pod systems trade flexibility for repeatability.

Coil and Wick — The Heating Core Inside the Pod

Inside the pod cartridge, the coil and wick form the thermal-liquid transfer core.

When powered:
• the coil heats rapidly
• the wick delivers liquid to coil surface
• liquid film vaporizes
• aerosol forms

The wick is a capillary structure — often cotton or porous ceramic — that meters how fast liquid reaches the coil. Feed rate must match heat rate. If feed is too slow → dry hits. If too fast → flooding and weak aerosol.

Because pod cartridges are compact, wick paths are short and precisely compressed. This creates controlled feed behavior across normal puff timing ranges.

Formulation also matters here. Different nicotine formulations behave differently under heat — which is why pod cartridges are often paired with smoother inhale formulations described in freebase vs nicotine salt differences.

Heat, wick, and formulation are tuned as a set.

The Puff Cycle — Step by Step

A single pod puff follows a repeatable micro-sequence:

1️⃣ User inhales
2️⃣ Airflow sensor detects pressure change
3️⃣ Control board activates output
4️⃣ Coil heats
5️⃣ Wick supplies liquid
6️⃣ Liquid vaporizes
7️⃣ Aerosol mixes with airflow
8️⃣ Vapor travels through central channel
9️⃣ User inhales aerosol

This full cycle typically runs only a few seconds — but inside that window, electrical, thermal, and fluid systems are all active.

Nicotine transfer during this cycle depends on aerosol structure and puff duration — mechanics examined in nicotine delivery behavior in pod devices.

Pod engineering aims to keep this cycle stable across hundreds of repetitions.

Why Strength Selection Is Tied to Pod Output

Because pod systems operate in a defined aerosol output band, nicotine strength must be matched to that band. Too low → over-puffing. Too high → puff shortening.

Practical selection behavior — including mismatch symptoms — is explained in how to choose the right nicotine strength.

Strength is not independent of device mechanics — it is part of the delivery system.

Airflow Routing — How Air Moves Through a Pod Device

Airflow in pod systems is tightly engineered and more structured than many users assume. Air does not simply “pass over a coil.” It follows a guided path designed to stabilize aerosol formation.

A typical pod airflow route looks like this:
• intake slots on device body
• internal airflow channel
• coil chamber pass
• vapor mixing zone
• central chimney tube
• mouthpiece outlet

Channel diameter and length determine:
• draw tightness
• vapor cooling rate
• aerosol density
• condensation probability

Pod systems usually target a moderately tight draw. This tighter airflow helps maintain aerosol concentration and consistent nicotine transfer per puff. It also reduces variability caused by different user draw strengths.

Compared with sealed single-life formats, airflow tuning in modular systems can be more cartridge-specific — one of the structural differences highlighted in disposable vs pod systems comparison.

Airflow is not just comfort — it is delivery control.

Vapor Micro-Chamber — Where Aerosol Stabilizes

Right around the coil sits a micro-chamber — a small enclosed space where freshly formed vapor first expands and mixes with incoming air.

This chamber controls early aerosol behavior:
• droplet size stabilization
• turbulence level
• early condensation
• temperature drop rate

If the chamber is too open:
• aerosol cools too fast
• droplets merge
• delivery efficiency drops

If too tight:
• vapor overheats
• harshness increases
• flavor degrades faster

Pod cartridge chamber size is therefore tightly matched to coil output and expected puff duration. Because cartridges are replaceable modules, chamber geometry can be tuned per model — unlike fully sealed formats that must average performance across their whole life.

Micro-chamber design is one of the least visible — but most important — parts of pod performance.

Temperature Window — Why Pod Devices Avoid Extremes

Pod systems are engineered to operate inside a narrow temperature window. This is deliberate.

Too low temperature:
• weak aerosol formation
• poor flavor release
• low transfer efficiency

Too high temperature:
• flavor breakdown
• wick stress
• harsh inhale
• residue acceleration

Pod control boards and coil resistances are selected so the device reaches the efficient vaporization zone quickly and stays near it during normal puff duration.

This moderate thermal strategy is what separates pod platforms from higher-power adjustable devices — again framed in pod vs mod device class differences — where heat flexibility increases but stability depends more on user settings.

Pods choose thermal consistency over thermal range.

Output Regulation — Keeping Each Puff Similar

Because pod battery bases are reused across many cartridges, output regulation is an important part of system behavior.

Regulation circuits help:
• smooth voltage delivery
• limit peak current
• enforce puff duration cutoff
• protect against short circuits
• stop output at low battery levels

Without regulation, early puffs at full charge would be hotter and later puffs weaker. Regulation narrows that variation band.

Most pod devices include:
• maximum puff time limits
• lockout after extended draw
• auto-cut after repeated rapid activations

These are not only safety features — they are performance stabilizers.

They keep coil behavior inside the intended operating envelope across hundreds of puffs.

Pod System Lifecycle — What Changes Over Time

Pod systems are designed for repeatable performance — but not perfectly flat performance. Across the lifecycle of a cartridge and repeated battery cycles, small shifts occur inside the system.

Typical lifecycle stages include:

Early stage:
• clean coil surface
• fully saturated wick
• dry airflow channel
• optimal heat transfer

Mid stage:
• light coil residue layer
• stable feed rhythm
• predictable aerosol density
• consistent draw feel

Late stage:
• thicker coil deposits
• slower wick response
• mild flavor flattening
• slightly reduced aerosol output

These changes are gradual and expected. Pod systems are engineered so the cartridge is replaced before material drift becomes extreme. Replaceable cartridges are a lifecycle control strategy — not just a convenience feature.

The reusable battery base is built for many cycles, while the pod cartridge is the calibrated wear component.

Common Pod System Failure Modes — Engineering Causes

When pod systems misbehave, the cause is usually mechanical or lifecycle-related — not mysterious.

Typical failure patterns include:
• weak vapor output
• delayed activation
• gurgling sounds
• tight or blocked draw
• intermittent firing

Most causes fall into a few engineering categories:

Cartridge lifecycle end:
• coil residue buildup
• wick fatigue
• chamber condensation

Interface issues:
• poor cartridge seating
• dirty contact pads
• airflow misalignment

Behavior stress:
• extreme chain puffing
• insufficient wick recovery time
• overheating cycles

Understanding failure modes prevents incorrect conclusions about formulation or strength when the real issue is component lifecycle.

Safety Logic — Built-In Operating Boundaries

Pod systems include embedded operating limits that protect both device and user.

Typical built-in controls include:
• maximum puff duration cutoff
• short-circuit protection
• over-current limits
• low-voltage shutdown
• rapid-fire lockouts

These controls keep the system inside its intended thermal and electrical range.

Public confusion often mixes device classes and exaggerates risks across categories. Structured myth correction and category clarification are summarized in common vaping myths explained — which helps separate compact pod engineering from unrelated high-power scenarios.

Engineering boundaries are part of the safety model.

Final Technical Takeaway

A pod system works as a coordinated micro-platform where:

battery logic + sensor activation + regulated power
• coil heat + wick feed
• chamber geometry + airflow routing
= repeatable aerosol delivery

Each puff is the result of electrical, thermal, and fluid systems acting together in a controlled sequence.

Understanding pod mechanics turns user experience from guesswork into system behavior. Performance differences become explainable. Limits become logical.

Pod devices are compact — but their operation is fully engineered.
